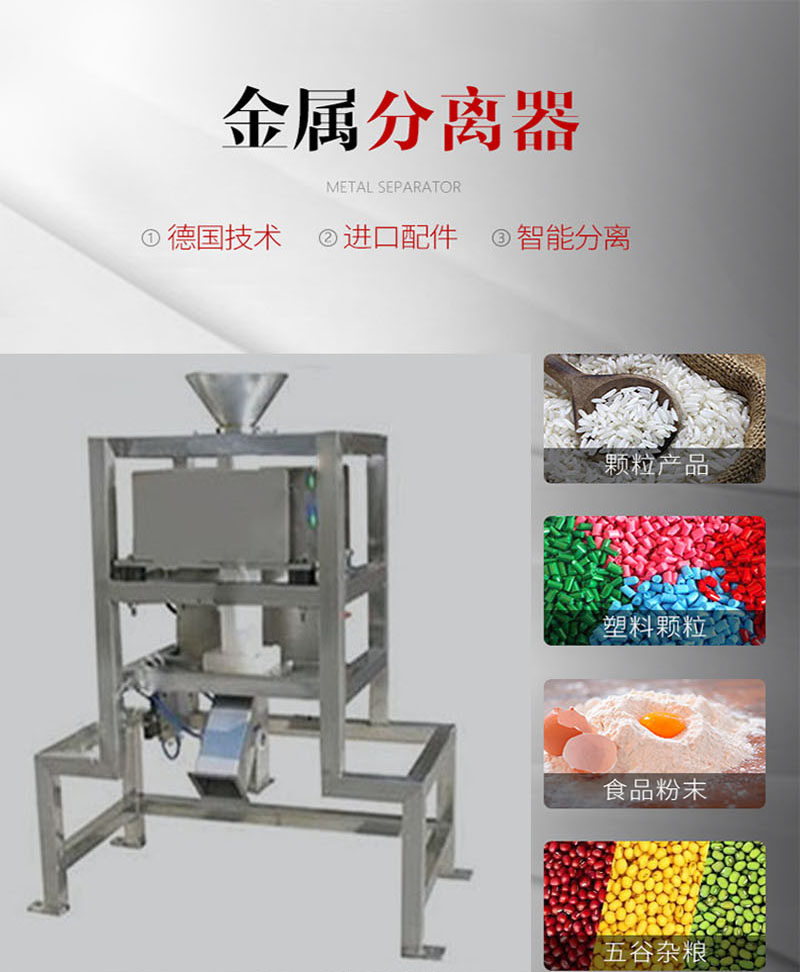

产品介绍
检测和分离所有金属:铜、铁、锌、不锈钢等所有金属
产品特点
检测对象:必须是非金属物质,外包装也要满足这个要求。
检测目的:金属探测器探测出被探测物品中的金属杂质。
行业范围:面粉、砂糖、化工、医药等各种添加剂产品,被检测物品大多是颗粒状、粉末状或液态状。
用法:在产品包装前探测,通常装在生产管道上,并将不合格产品自动剔除。
适用行业:食品、医药、保健品、包装、其他行业

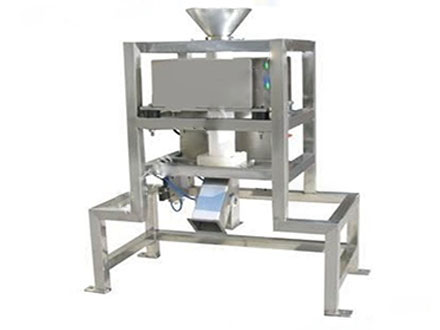

KY5G(自由落体式金属分离器Freefall metal separator) | ||||
型号Type | KY5G80 | KY5G100 | KY5G150 | |
料管内径Diameter of pipe | 80 | 100 | 120 | |
灵敏度注1: Accuracy: | 铁Fe | Φ0.5 Φ1.0 | Φ0.6 Φ1.2 | Φ0.7 Φ1.5 |
不锈钢SUS304 | ||||
通过容量By capacity | 5000L/H | 10000L/H | 20000L/H | |
电源 Power | AC220V~50hz | AC220V~50hz | AC220V~50hz | |
皮带速度Belt speed | 25m/min | 25m/min | 25m/min | |
剔除方式Excluding way | 自动剔除 automatic reject
| |||
最高侦测温度: Maximum temperature detected | 可达110度,侦测温度50度—110度可选配高温散热系统 Up to 110 Celsius Degree. the cooling system can be used when detected temperature is of 50 Celsius Degree to110 Celsius Degree | |||
适应范围:
Adaptation:
| 适用于高温充填制品。腌制食品、汤汁、高盐分制品、各种蒸镀铝箔真空包装产品 Suitable for high temperature filling products. Preserved foods , soup , high-salt products , all kinds of vacuum deposition of aluminum foil packaging products |
各种规格均可定做Customer size available
注1:实际使用时探测灵敏度会根据异物种类、被测物品的性质(温度、内容物、形状等)而有所差异
